Honeywell XYR6000 ISA100 Wireless Pressure Transmitters

The XYR 6000 Pressure transmitter was built on the successful ST 3000 series pressure transmitter line. Through Fluidic, Honeywell supply transmitters for the measurement of gauge pressure, absolute pressure and differential pressure, plus options for remote chemical seals and flange mount hydrostatic pressure monitoring.  The following break down shows models and ranges available:

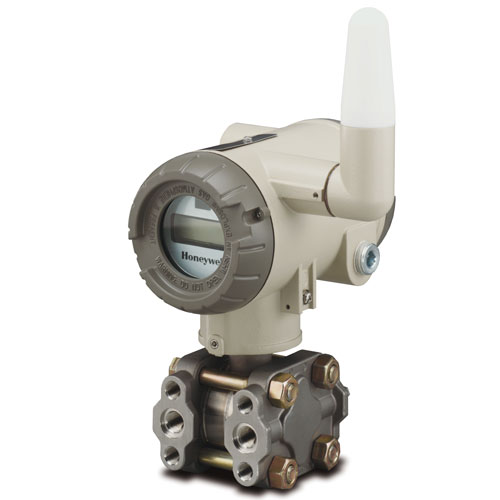

Honeywell ISA100 Differential Pressure Transmitters
• STDW120 / STDW924 – 0 to 400 in H2O
• STDW125 – 0 to 600 in H2O
• STDW130 / STDW930 – 0 to 100 psi
• STDW170 / STDW974 – 0 to 3,000 psi

Honeywell ISA100 Gauge Pressure Transmitters
• STGW944 (dual head) – 0 to 500 psi
• STGW974 (dual head) – 0 to 3,000 psi
• STGW14L / STGW94L (in-line) – 0 to 500 psig
• STGW17L / STGW97L (in-line) – 0 to 3,000 psig
• STGW18L / STGW98L (in-line) – 0 to 6,000 psig
• STGW19L / STGW99L (in-line) – 0 to 10,000 psig

Honeywell ISA100 Absolute Pressure Transmitters
• STAW14L / STAW94L (in-line) – 0 to 500 psia

Honeywell ISA100 side flange mount Hydrostatic Level Transmitters
• STFW128 / STDW928 – 0 to 400 in H2O
• STFW132 / STDW932 – 0 to 100 psi
• STFW12F / STDW92F – 0 to 400 in H2O (pseudo)
• STFW13F / STDW93F – 0 to 100 psi (pseudo)
• STFW14F – 0 to 600 in H2O (pseudo)

Honeywell ISA100 Pressure Transmitters with Remote Seals – DP, GP, AP models
• STRW12D – 0 to 400 in H2O
• STRW13D – 0 to 100 psi
• STRW14G / STRW94G – 0 to 500 psi
• STRW14A – 0 to 500 psia
• STRW17G – 0 to 3000 psi
• STRW93D – 0 to 2700 in H2O

The XYR 6000 Wireless Pressure transmitters are part of a broad series of transmitters under the Honeywell XYR 6000 line of wireless products. Using XYR 6000 wireless transmitters, customers can obtain data to create information from remote and hazardous measurement locations without the need to run wires, where running wire can be cost prohibitive and/or difficult if the measurement is in a hazardous location. Without wires, transmitters can be installed and operational in minutes, quickly providing information back to your system.  The XYR 6000 Universal I/O transmitter is part of the Honeywell OneWireless system and are ISA100.11a compliant.  Each XYR 6000 transmitter is battery powered by two long-life “D” size lithium batteries. These batteries have an expected lifetime of up to ten years. Transmitter range with the integral antenna is 1,000 ft. (305 m) line of site (LOS) under ideal conditions.

Fluidic hold an exclusive channel partner agreement with Honeywell Field Products division.  Our instrumentation engineers are product trained and able to help with instrument selection within the full Honeywell Field Product instrumentation portfolio including the entire ISA100 OneWireless product family.  Fluidic order directly with the Honeywell factory via an exclusive channel partner web portal and hold stock for some common lines.  Please contact either office for more information (Glasgow 0141 641 5920 or Warrington 01925 572401).

The Honeywell OneWireless™ Network is an industrial wireless mesh network capable of simultaneously supporting ISA100 Wireless field instruments  and, where beneficial, Wi-Fi devices and Ethernet/IP-based devices.  The Honeywell OneWireless™ ISA100 wireless network for wireless field product communications is composed of the Wireless Device Manager (WDM)Field Device Access Point (FDAP) and Honeywell OneWireless XYR6000 series transmitters.
