Honeywell STD700 Smartline® smart pressure transmitters are modular differential pressure transmitters aimed at economic industrial process applications. Of traditional 54mm centers, kidney flange design with a range of wetted and non wetted material options, the Smartline® STD700 differential pressure transmitters are suited to a wide range of industrial process control applications.

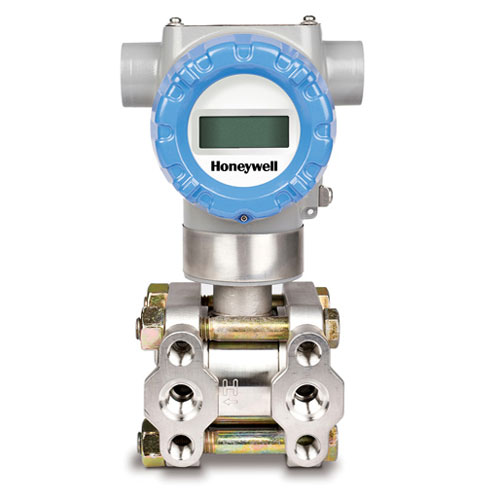

Honeywell STD700 SMARTLINE Differential Pressure Transmitters
Honeywell Smartline® STD700 family comprise of the following ranges
- STD720 range 0…1000mbar with a 100:1 turndown
- STD730 range 0…7bar with a 100:1 turndown
- STD770 range 0…210bar with a 100:1 turndown
All Honeywell ST700 Smartline® smart differential pressure transmitters are compensated for pressure and temperature. Like its big brother – the STD800 – the STD700 smart pressure transmitter offers a modular pressure transmitter design with many common parts. Displays, transmitter pucks, process heads, gaskets and other associated parts can be held in stock to be assembled for each custom install as required.
STD700 Smartline® smart differential pressure transmitters, features and benefits…
- Modular design allows field modification & stocking of spares
- Uncertainty to within ±0.05%
- Stability to within ±0.02% of URL per year for 5 years
- Static pressure and temperature compensation
- Complete reverse polarity insensitivity, undamaged by and will still operate with cross wiring install
- Fast response times within 100ms
- NAMUR NE43 Compliant Outputs
(Normal Limits 3.8 – 20.5 mA, Failure Mode ≤3.6mA low or ≥21.0mA high)
Other models within the SmartLine® family include options for gauge pressure, absolute pressure, differential pressure, remote chemical seal assembly and ‘pseudo flange’ hydrostatic level measurement (again via differential pressure). Fluidic hold an exclusive channel partner agreement with Honeywell Field Products division. Our instrumentation engineers are product trained and able to help with instrument selection within the full Honeywell Field Product instrumentation portfolio including the entire Smartline® smart pressure transmitter family. Fluidic order directly with the Honeywell factory via an exclusive channel partner web portal and hold stock for some common lines. Please contact either office for more information (Glasgow 0141 641 5920 or Warrington 01925 572401).
